Reliable, Low Maintenance Roll-Up Dock Door with Lasting Durability

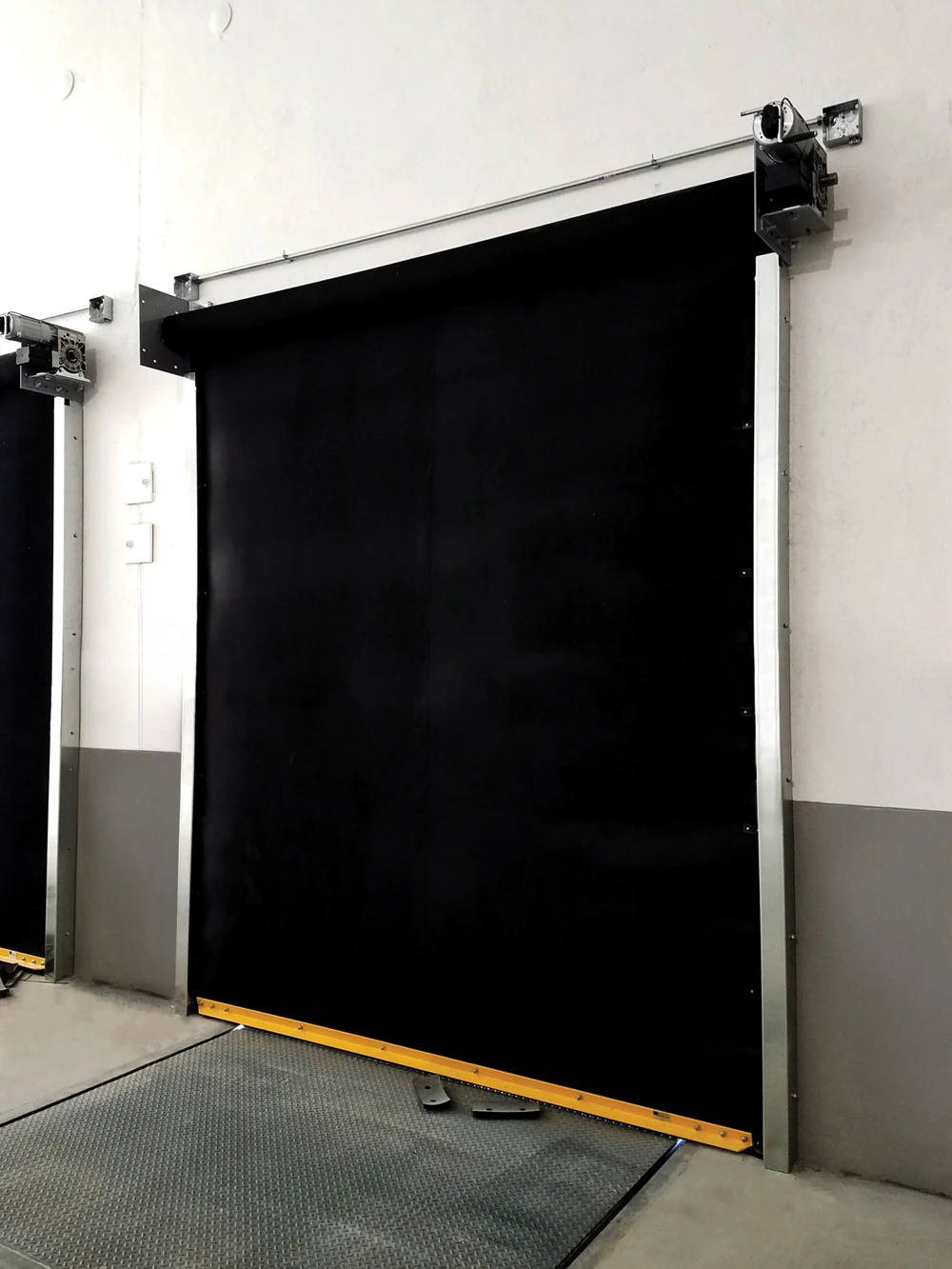

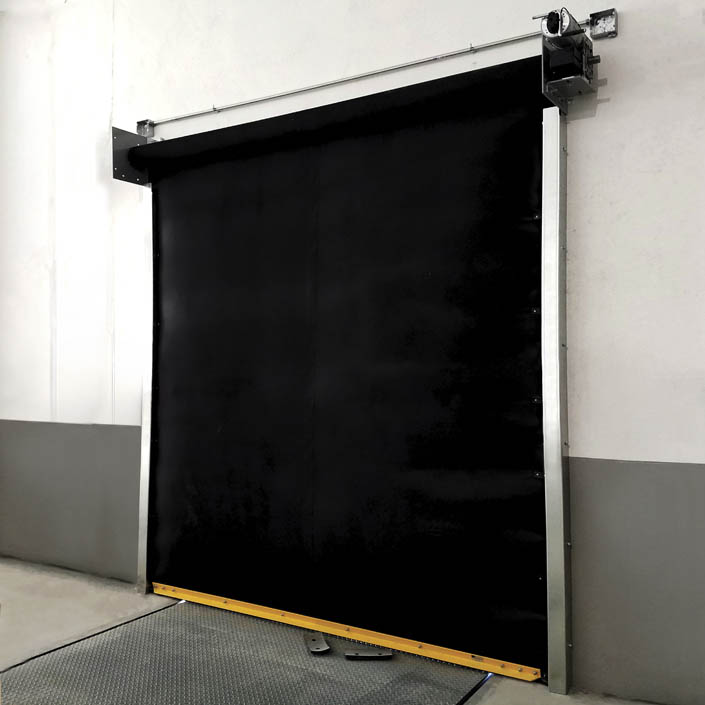

PowerTec™ SD High-Performance Rubber Door

The PowerTec SD rubber dock door proves that simple looks can be deceiving. Its tight sealing properties and safe, springless operation are ideal for day in, day out loading dock operations. Minimizing air and light infiltration, it also features low profile guides to fit in areas with limited space. Like other PowerTec doors, it’s engineered to take a hit and be back up and running with little effort – keeping dock areas moving, productive and operating safely. The PowerTec SD can be built up to 12′ wide x 12′ high.

The PowerTec SD high-performance rubber dock door is backed with a limited lifetime rubber panel warranty and a 2-year limited motor, mechanical and electrical warranty.

  • Benefits
  • Engineered with a springless design and few moving parts for low maintenance.
  • Low profile side columns to fit into tight spaces.
  • Opening speed up to 18 inches per second; manually-operated model also available.
  • Variable AC drive and intelligent controller reduce wear on door parts and control power consumption.

  • Safety
  • Dual thru-beam photo eyes detect movement close to the door, activating reverse-to-open.
  • Standard chain hoist for manual operation.

Construction

  • 1/4-inch thick SBR rubber panel
  • Breakaway bottom bar in safety yellow
  • Powder-coated components provide corrosion-resistance
  • 3-1/2-inch low profile side columns in safety yellow
  • Rubber loop seal on bottom bar

Options

  • Blue or gray EPDM panel material

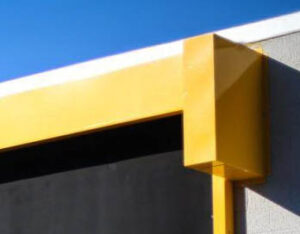

  • Hood and motor cover
  • 2” high visibility strip
  • 14” x 14” vision windows
  • Multiple door activation options available; contact factory for details
